Mobile Turnstile for Construction Sites

The construction site turnstile for personnel access, fully wired and ready for operation once connected to power. Available on a mobile concrete platform, with a metal plate for container installation or, on request, built into a container. You can find the matching software under construction site access control.

checkmark Delivered and fully operational in 7 working days
checkmark Quick setup with Plug & Play principle
checkmark Flexibly relocatable and reusable
Mobile Turnstile for Construction Sites
“Setting up at the start of a project takes minutes instead of hours.”
Patrick Skasa Senior Site Manager, ProSite GmbH

More than 150,000 workers rely on Bausicht

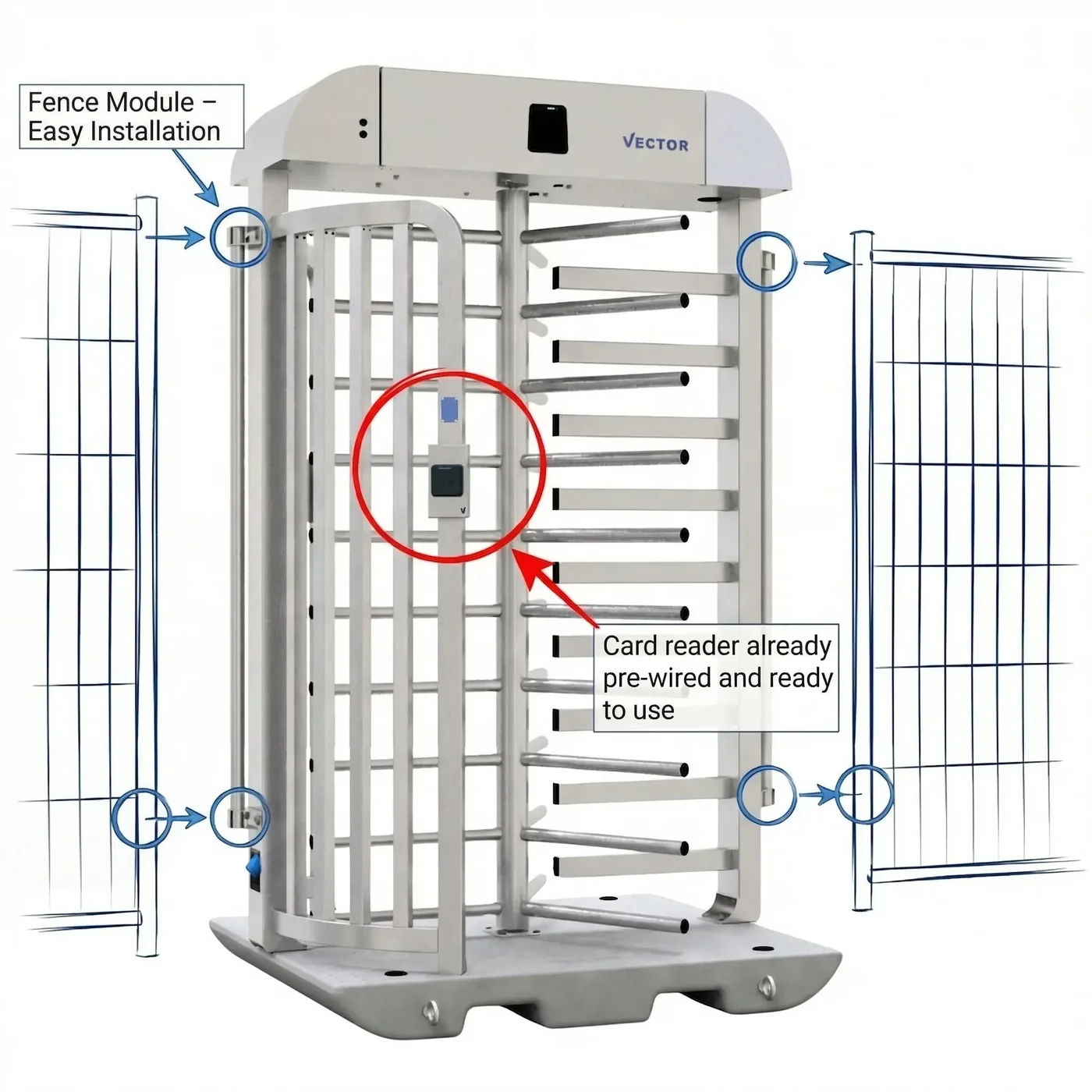

Turnstile for construction sites, fully equipped upon delivery
  • Fence connection
  • Card reader pre-wired
  • Just connect the power

Operational within 10 minutes

Turnstile equipment

Turnstile for construction sites, fully equipped upon delivery

Order the turnstile fully wired and pre-configured, with 2x RFID card readers, Bausicht controller and router with IoT SIM card. Everything is already installed and connected to the Bausicht system.

checkmark Fully wired and pre-configured, no IT setup required
checkmark Unload, connect the fence, plug in the power
checkmark Readers of your choice: access card, QR code or iris and face
Technical data
DesignElectromechanical V-Turnstile-Compact turnstile, galvanised, with construction fence module
Passage width600 mm or 850 mm
Dimensions (L × W × H)1,200 × 1,500 × 2,421 mm with 600 mm passage
Weight760 kg with 600 mm passage
Connection230 V, 20 m cable with CEE or Schuko plug
Protection ratingIP55
Power failureFail-Open/Close
InstallationMobile concrete platform with forklift pockets, adjustable feet and non-slip surface. On request with a metal plate for installation in a container or built into a container.

Setting up the turnstile on site in five steps

The turnstile arrives fully assembled. You need neither a network cable nor Wi-Fi and only connect the power.

  1. Unload

    By forklift or crane, ENTRY faces outwards.

  2. Unpack

    Remove the film, accessories are inside.

  3. Secure the keys

    Label them and store them safely.

  4. Connect the fence

    Fasten with construction fence connectors.

  5. Connect the power

    Plug in, the router connects by itself.

Calculate the costs for your turnstile on the construction site

Configure your system. Transparent and directly calculable.

Rental prices are per month plus one-time freight and decrease with longer rental periods.

Turnstile with 2x card readers and integrated SIM card

Turnstile with 2x card readers
and integrated SIM card

Electromechanical turnstile with fence module in galvanized finish on a mobile concrete platform. Brings its own internet: integrated …

Passage width: 600 mm 850 mm
Readers: Standard card readers QR code readers Biometric readers

from 7,698.05€

or rent from 263.89€ / month

Details
Show rental rates
Show rental rates: Turnstile with 2x card readers and integrated SIM card
Rental period600 mm850 mm+ QR code readers
up to 1 month1,318.36€1,394.58€+ 50.26€
up to 6 months659.29€697.29€+ 25.14€
up to 12 months495.11€523.72€+ 18.88€
up to 24 months396.47€419.31€+ 15.12€
up to 36 months329.64€348.65€+ 12.57€
up to 48 months and longer263.89€279.04€+ 10.06€

Biometric readers: Only available for purchase

All rental prices in € per month.

Printer Set

Printer Set

High-quality construction site ID card printer, 2x colour ribbons, cleaning kit, USB card reader.

1,824.65€

Details
Construction Site ID Card

Construction Site ID Card

RFID cards with holder and clip, customised to your project.

4.00€

Details

Add-on for a digital access control system

Recommended

Access Control Software

Central online platform for access control.

300€

Details

Why our mobile turnstiles for construction sites?

Connect power, done

Connect power, done

Readers, controller and router are built in. You lay no LAN cable and need no IT on site.

Relocate at any time

Relocate at any time

Move it on site or take it to the next project, without new cabling.

Managed in the online portal

Managed in the online portal

The turnstile arrives pre-configured for Bausicht access control. No on-site server is required.

To access control

Do you have further questions?

Here you will find answers to frequently asked questions about our turnstiles.

Question not covered here?

We answer it in a call and walk you through the module on a sample construction site.

Free Consultation

Delivery, assembly and commissioning are possible within 7 working days. The system is Plug & Play and only requires a power supply. The five setup steps show how the installation works.

Contact Form

Turnstile for Construction Sites Request a Quote

We will be happy to prepare a tailored offer including delivery and commissioning. Fast, non-binding and precisely tailored to your construction site.
checkmark Delivery & commissioning possible in 7 working days
checkmark Plug & Play: only power connection required
checkmark Compatible with Bausicht access control
